Indoor Wall LED Profiles Channel With PC PMMA Diffuser For Stair And Corner Decorative Lighting

Indoor Wall LED Profiles Channel With PC PMMA Diffuser For Stair And Corner Decorative Lighting

Nom De La Marque: K&C
Numéro De Modèle: K59
Nombre De Pièces: 100meters
Prix: Negotiate
Conditions De Paiement: Western Union, T/T, L/C
Capacité à Fournir: 100TONS PAR MOIS
Des informations détaillées
Lieu d'origine:
La Chine, Guangdong
Certification:
ROSH
Warranty(Year):
5-YEAR
Material:
6063 alloy aluminum
Shape:
line
Product Name:
30 degree led aluminum profile
Function:
Decorative illumination
IP grade:
IP20/44
Installation:
wall mounted
Usage:
pcb width within 5-10mm
Détails d'emballage:
Sac de PE par coton en aluminium de perle de Profile+ à l'intérieur de +carton pour l'emballage d'ou
Capacité d'approvisionnement:
100TONS PAR MOIS
Mettre en évidence:

6mm Corner led light aluminum channel

,

6mm profile for led strip lights

,

6mm profile for led strip lights

Description du produit

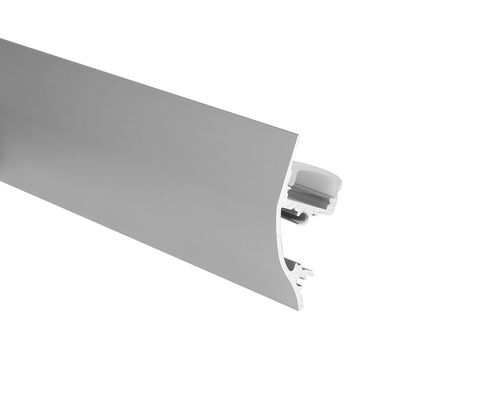

IP44/20 Anodized Wall LED Profiles Extruded With Acrylic Diffuser For Stair And Corner Lighting



wall LED strip aluminium profiles is our new recessed LED profile for decorative lighting business,it will be attached to wall by piece of backside clips,per meter with two piece,as for some palces are corner but it ia dark, can not install tranditional lighting,if we want to install LED lighting ,so we can use this led housing ,screw the clip to wall ,then just attached to led profiles that can be work.Application Like corridor,wall corner,railway walkway,etc.


Application
- For Stair/Wall/ Corner LED Lighting To Heat Dispation,To Keep LED Strip Long Life-span.

-Bright Your Step And Keep you Safe;

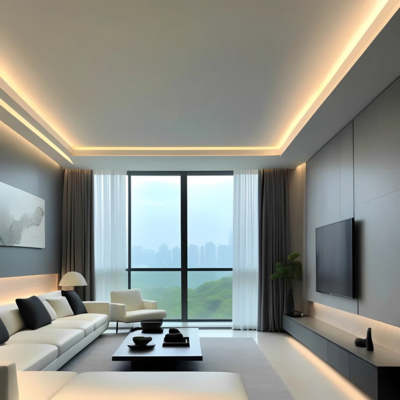

-Decorative Architecture/Home-Wall Corner/Stair,To Make Up More Brightness And Warm Amostphere.


Assembly
- Screw to the Wall.


Additional information
- The profile is such hard;

- Suit For 5-10mm width LED strip light, and LED strip light can easily buy from any lighting retail store;
- Can be used lasted for five year;


Main Specifications


Model No.: K59
Item Type: Wall Corner/Stair Aluminium Profile
Dimensions: (W)17*(H)42mm
Standard length: 2m/pcs
Customized-length: Available on request
Suitable for led strip: 5-10mm width
Material: 6063 T5 Aluminum Alloy
Treatment: Sandblasting oxidation
Finished color: Silver, black, white

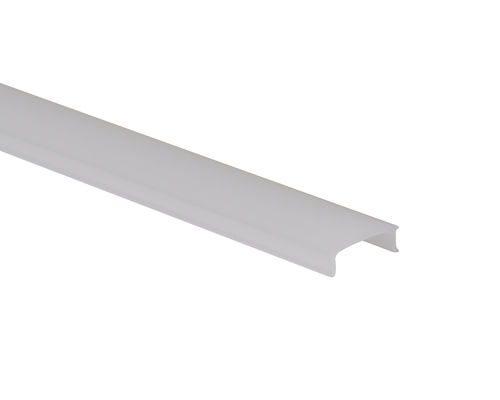

Diffuser material: PC
Diffuser finished: clear/semi-clear/opal matte

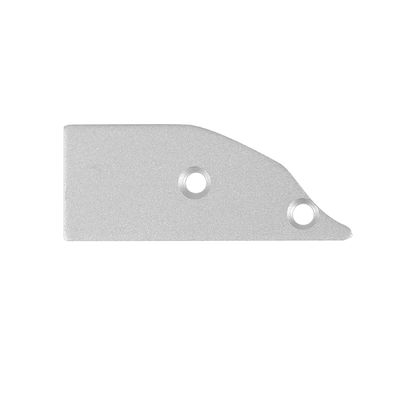

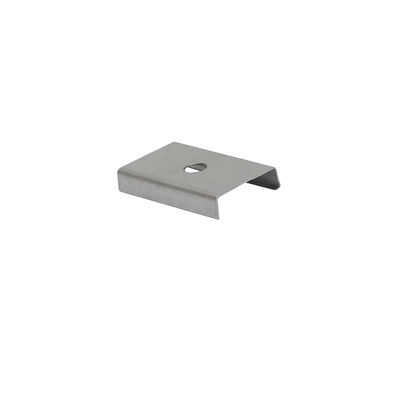

Accessories: end cap+Clips
Installation: Recessed
Standard Package: Inner Clear PE bag+EPE FOAM+Carton Box
Customized Package: Available on request
Handling time Samples within 3 working days
Batch order 3-15 working days upon stocks
Shipment By sea, by air, by express for option



Indoor Wall LED Profiles Channel With PC PMMA Diffuser For Stair And Corner Decorative Lighting 0




FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.

Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.



Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.


Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.

Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.

Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
